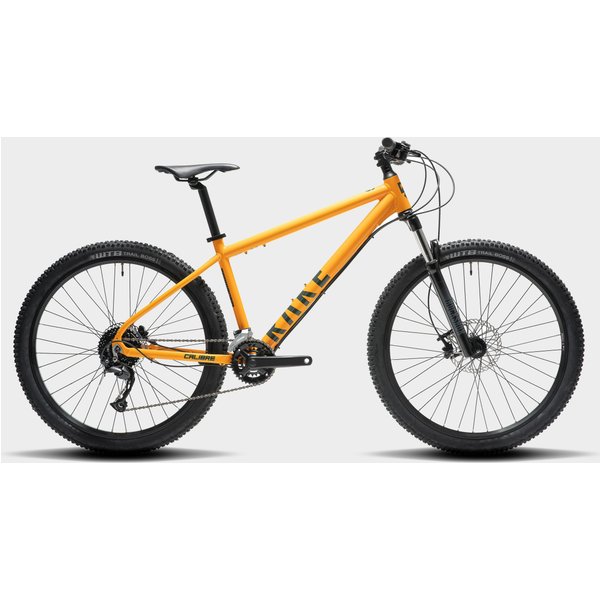

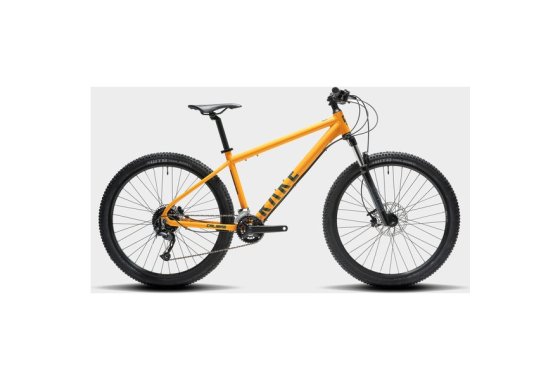

Calibre Rake 27” - Mountain Bike
The Rake 27 is the successor to Calibre’s award winning Two3, a bike that magazines called a “surprisingly smooth ride with excellent frame shape and handling”. It is a serious hardtail equipped with reliable parts from Shimano and RockShox. If you are just getting into mountain biking then the Rake will get you hooked – it’s fun on the flat, confident on the downhills and easy on the uphills.
The Rake 27 is what Calibre is all about - proper mountain bikes that are accessible for everyone. It is everything you need for getting off road, the complete package. A fun and easy-to-handle hardtail that is a match for any terrain.
It’s built with a solid 6061 Alu frame, refined geometry, and a selection of branded components that you can count on. Its time-perfected geometry uts you in the perfect position for climbing steep hills and then reaping the rewards with flowy descents. 27.5” wheels make the bike more responsive and nimbler than its big-wheeled bredrin, the Rake 29.
The Rake 27 is equipped with a RockShox Judy fork with 100mm of travel, which sucks-up the lumps and bumps of the trail. As the name suggests, the WTB Trail Boss tyres are perfect for carving turns on loose and compacted surfaces. Its Clarks M2 hydraulic brakes give you all the stopping power that you need to stay in control. All-in, the Rake 27 lives up to the Calibre promise of fun riding and outstanding value for money.
Feature Highlights
Calibre hardtail frame – A lightweight alloy frame with balanced geometry for efficient climbs and confident descents
100mm RockShox Judy suspension fork - A capable air sprung trail fork with adjustable rebound damping
Clarks M2 hydraulic disc brakes – Smooth and responsive brakes that represent awesome value
WTB Trail Boss tyres – An all-round trail tyre that excels on loose and rocky surfaces
About Calibre
Calibre Bikes have a simple ethos: to build high-quality road and mountain bikes, that are affordable and fun to ride. Thoughtful and innovative design, with great attention paid to geometry and spec, makes Calibre an award-winning brand that leads the pack.
Frame: Alu 6061 29”, 135 QR, Post-mount disc, 44mm headtube
Fork: RockShox FS-Judy TK 27.5” QR, Rebound adjust, 100mm travel
Handlebar: Calibre Trail, Alloy 780mm wide, 20mm upsweep, 6°backsweep, 31.8mm clamp
Stem: Calibre Trail, 31.8mm clamp, 45mm extension
Grips: Calibre Trail, Single lock-on, soft compound, integrated bar end
Headset: Semi-integrated, ZS44
Saddle: Calibre Trail, steel rails
Seatpost: Calibre Trail 30.9 x 350mm
Seatclamp: Calibre QR 34.9MM
Chainset: Calibre 175mm 22x36T
Pedals: Flat pedals
Bottom Bracket: Square taper 73mm BB
Drivetrain: Shimano 18 speed
Cassette: Shimano 9 speed Acera 11-36T
Chain: KMC X9
Shifter Right: Shimano Alivio 9 speed for 2x9
Shifter Left: Shimano Alivio 2 speed for 2x9
Rear Derailleur: ShimanoAlivio 9 speed direct mount
Front Derailleur: Shimano Dual pull 34.9 - 31.8 / 36-14T
Tyres: WTB Trail Boss Comp 27.5” x 2.25” W110-0784
Rims: 27.5”, 25mm wide, 32h, alu double wall
Front Hub: Shun Feng, SF-A217F, Alu, black, 36h, 6 bolt disc, 100mm QR
Rear Hub: Shun Feng, SF- A217R, Alu, black, 36h, 6 bolt disc, 135 QR
Front Brake: Clarks M2 Hydraulic disc
Rear Brake: Clarks M2 Hydraulic disc
Front Rotor: Clarks Wavey 180mm
Rear Rotor: Clarks Wavey 160mm
Order your bike to be delivered to your home or collect it from a GO Outdoors store to access some great benefits.
Please Note: Due to ongoing issues in the supply chain, this bike is subject to specification changes without notice. Any changes made will be using equivalent or higher quality parts.
**Some minor assembly is required. Consult our assembly guide for assistance.
Unfortunately, we are not able to process faulty or warranty bike returns through our warehouse. If your bike develops a fault, please take it to your nearest GO Outdoors store where we have a full workshop and trained mechanics who will be able to assist you.
Please note, this excludes Hathersage and Southport stores.
